EXPRESS BARRIER \ BARRIÉRE VITESSE
1M BTC Express* is a barrier of BTC (Barbed Tape
Concertina) with a 1000 millimeter diameter that rapidly
deploys in 50 meter increments. A unit of BTC Express is
deployed out of it's packaged crate with the use of the
Express Magazine 200* (deployment vehicle) to erect the
barrier at 50 meters per minute. The barrier can be
recovered back into the crate at 50 meters in 7 minutes
for redeployment or storage.
BTC, barbed tape concertina, is a coil of single-strand spring-steel line wire fitted with barbed tape with small barbs. The coil loops are connected by steel clips to form a cylindrical diamond-pattern when the coil is deployed.
QUALITY CONTROL: Inspected, examined and tested in accordance with Specification A-A-55522A Barbed Tape.
BARBED TAPE MATERIALS: Galvanized Steel strip and wire

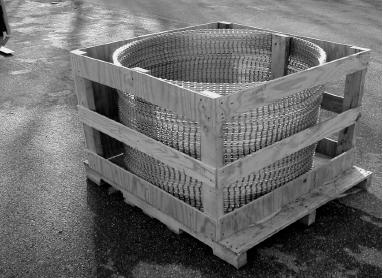

PACKING SPECIFICATIONS: The 1M BTC Express is packaged in a crate that
deploy, recover and store the unit.
FEATURES
Deployment speed 50 m (164’) per minute
Recovery speed 50 m (164’) in 7 minutes
Reusable Express Magazine 200
Re-deployable BTC unit
After deployment and recovery, easily stored
ACCESSORIES
Anchors: U-shaped, 6 gauge (4.8 to 5.0 mm galvanized steel 400 mm long)
Magazine: Express Magazine 200 (deployment vehicle)
* Patent and patent pending
EXPRESS BARRIER \ BARRIÉRE VITESSE Dimensions
Diametre |
Barbed Strip |
|
Weight Per Roll (kgs) | Length Per Roll (metres) |
|---|---|---|---|---|
1000± 25
|
GALV |
GALV |
51 |
50 |
